Hola amigos, me complace presentaros el primer prototipo de
UFO TiTAN
No estoy seguro de si es el primer mango de maquinilla clásica fabricado
en Titanio, pero lo que sí puedo asegurar es que es el primer mango UFO Razor
Handles fabricado en este metal.
Antecedentes
Ya en mis inicios con el U1, pensé en utilizar el Titanio para realizar
un mango. En Abril de 2012 se empezó a hablar de ello en el foro español
afeitadoclasico.com y en Julio de 2012 hice la compra de material para 4 o 5
mangos. Se trataba entonces de un proyecto personal junto con dos amigos
españoles, y yo lo iba dejando para cuando tuviera tiempo libre. En Julio y en
Agosto de 2012 puse en conocimiento de este proyecto a dos amigos más. Uno de
Nueva York y otro de Australia. Desde entonces ellos conocen el proyecto y el
nombre asignado al mismo, que como no podía ser de otra manera es UFO TiTAN.
Aleación
utilizada
He elegido la aleación alfa-beta de Titanio Grado 5, también conocida
como Ti6Al4V, Ti-6Al-4V o simplemente Ti 6-4. Es la aleación de Titanio más utilizada, sobre
todo, en el campo de la aeronáutica, marina, generación de energía, biomedicina
o estomatología. Es una excelente
combinación de dureza y resistencia a la corrosión, y con alta
biocompatibilidad. Es el caballo de batalla de la industria del Titanio.
Tiene una composición química del 6% de aluminio, 4% de vanadio, 0,25%
(máximo) de hierro, 0,2% (máximo) de oxígeno, y el resto es Titanio. Es
significativamente más dura que el Titanio puro comercial, y manteniendo casi
todas las propiedades del mismo. En cuanto a la densidad y el peso, es aproximadamente
un 45% más ligero que el acero inoxidable 316L, y un 60% más pesado que el
aluminio de grado aeronáutico.
El mecanizado es
más complejo y costoso, puesto que hay que utilizar un refrigerante adecuado
porque es mal conductor térmico y difícil de refrigerar. Además produce un
montón de herramientas con el filo de corte deteriorado a consecuencia de las altas temperaturas en
la zona de corte. El moletado es más difícil debido a la alta dureza, pero sin
embargo produce un patrón muy nítido y profundo, tanto o más bello que el
acero. El pulido es muy costoso también, y alcanzar un pulido a espejo es
difícil. El tono de color cambia a las pocas horas del azulado a un tono marrón metálico que
combina muy bien con el niquelado de los cabezales.
El mango
Aleación de Titanio
de Grado 5 Ti6Al4V. 85 mm de largo.
15/15 mm calibre. 57 gr de peso.
La rosca es M5x0,8.
Los cabezales Gillette ajustan bien, incluyendo el cabezal NEW. El cuello
finaliza a 8,5 mm para ajustar perfectamente.
He utilizado mi moleteado UFO aristocrat, que en este material queda nítido y profundo. Es un mango
con mucho agarre. Es ideal para aquellos a los que les gusta el calibre 15 mm
pero con un peso contenido. En acero, un mango de estas características pesa
103 gr, y en Titanio, un 45% menos, 57 gr.
Pre-Pedidos
Debido al alto costo
de este material y la compra mínima que debo realizar, si estáis interesados en
poseer un mango tan exclusivo como éste, con mi diseño y mi moletado, podéis enviarme vuestra solicitud a
info@uforazorhandles.com, y
estudiaré la posibilidad de realizar una pequeña serie para los interesados a
un precio lo más ajustado posible, pero el precio de este mango superará el
doble del precio de un mango normal de acero, seguro.
También sería
posible realizar algún mango de calibre 18/18 mm, e incluso de mayor longitud, que
teniendo en cuenta el peso de este material, podría resultar en un peso
bastante interesante.
Gracias por todo
vuestro apoyo, amigos. Sois gente maravillosa. Estoy agradecido a todos.
Fotos
Ver abajo.
________________________________________________________________
English text
Hello friends, I am pleased to introduce the first prototype of
UFO
TiTAN
Not sure if it is the first safety razor handle made of Titanium, but
what I can say is that it is the first UFO Razor Handles handle is made of this
metal.
Background
Back in my early days with the U1, I thought about using Titanium for a
handle. In April 2012 there was talk of it in the spanish forum
afeitadoclasico.com and in July 2012 I made the purchase of material for 4 or 5
handles. Then, it was a personal project along with two Spanish friends, and I
was leaving it for when I had free time. In July and August of 2012 I informed
of this project to two friends more. One from New York and one from Australia.
Since then, they know the project and the name assigned to it, how could it be
otherwise is UFO TiTAN.
Alloy
used
I have chosen the alpha-beta alloy grade 5 Titanium, also known as
Ti6Al4V, Ti-6Al-4V or simply Ti 6-4. This Titanium alloy is the most widely used,
especially in the field of aeronautics, marine, power generation, biomedicine
or dentistry. It is an excellent combination of hardness and corrosion
resistance, and high biocompatibility. It is the workhorse of the Titanium
industry.
It has a chemical composition of 6% aluminum, 4% vanadium, 0.25%
(maximum) of iron, 0.2% (maximum) of oxygen and the remainder is Titanium. It
is significantly harder than commercially pure Titanium, and maintaining almost
all properties. As the density and weight, is approximately 45% lighter than
316L stainless steel, and 60% heavier than aircraft grade aluminum.
The machining process is more complex and expensive, because I have to
use a suitable coolant because it is a poor conductor of heat and hard to cool.
It also produces a lot of tools with cutting edge deteriorated as a result of
the high temperatures in the cutting zone. Knurling is more difficult due to
the high hardness, yet produces a very sharp and deep pattern, even more
beautiful than steel. Polishing is very expensive too, and achieve a mirror
polished finish is difficult. The color tone changes within hours from the
bluish color to a metallic brown tone that pairs very well with the nickel plated heads.

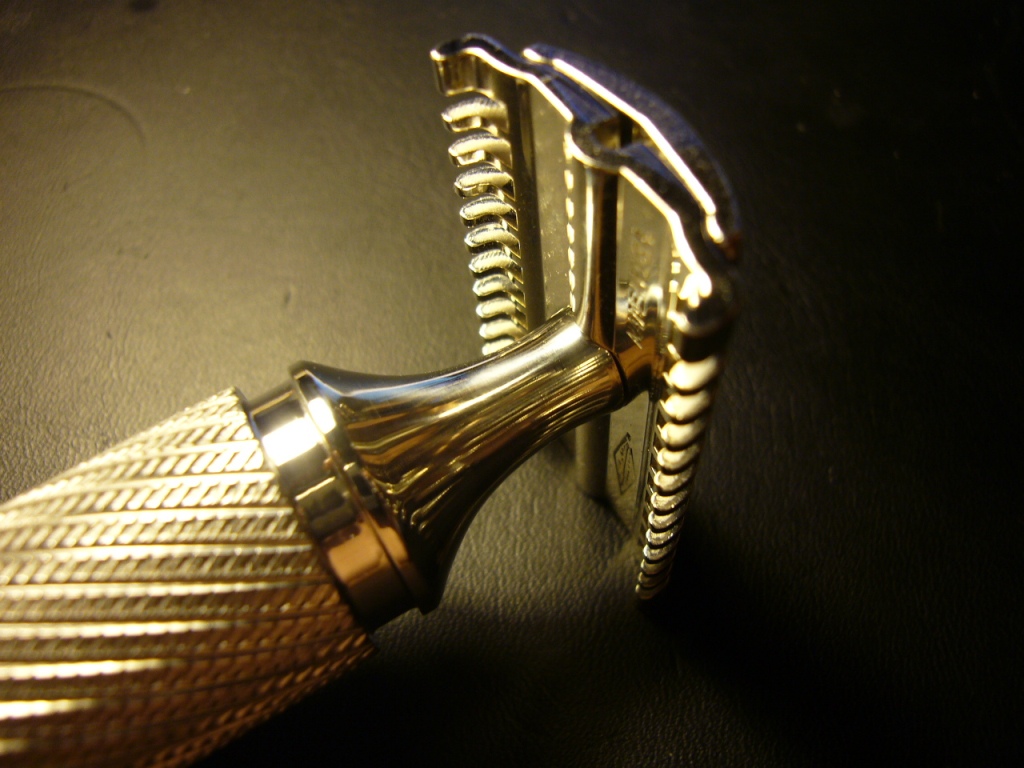

The
handle
Titanium Grade 5 Alloy Ti6Al4V. 85 mm long. 15/15 mm caliber. 57 g.
weight
Thread is M5x0.8. Gillette heads fit well, including the NEW head. The
neck ends to 8.5 mm to fit perfectly.
I used my UFO aristocrat knurling, that in this material is
clear and deep. This handle is plenty of grip. It is ideal for those who like
the 15 mm caliber, but with a light weight. In steel, a handle like this weighs
103 g, and in Titanium, 45% less, 57 gr.
Pre-Orders
Due to the high cost of this material and minimum purchase that I should
make, if you are interested in owning a handle as unique as this, with my design and my knurling, you can send your request to
info@uforazorhandles.com, and I will study the possibility of making a small
series for stakeholders to a price as close as possible, but the price of this
handle will exceed twice the price of a normal steel handle, sure.
It would also be possible to make a handle of 18/18 mm caliber, and even
greater length, taking into account the weight of this material, it may result
in a quite interesting weight.
Thanks for all your support, folks. You are wonderful people. I am
grateful to everybody.
Pics
